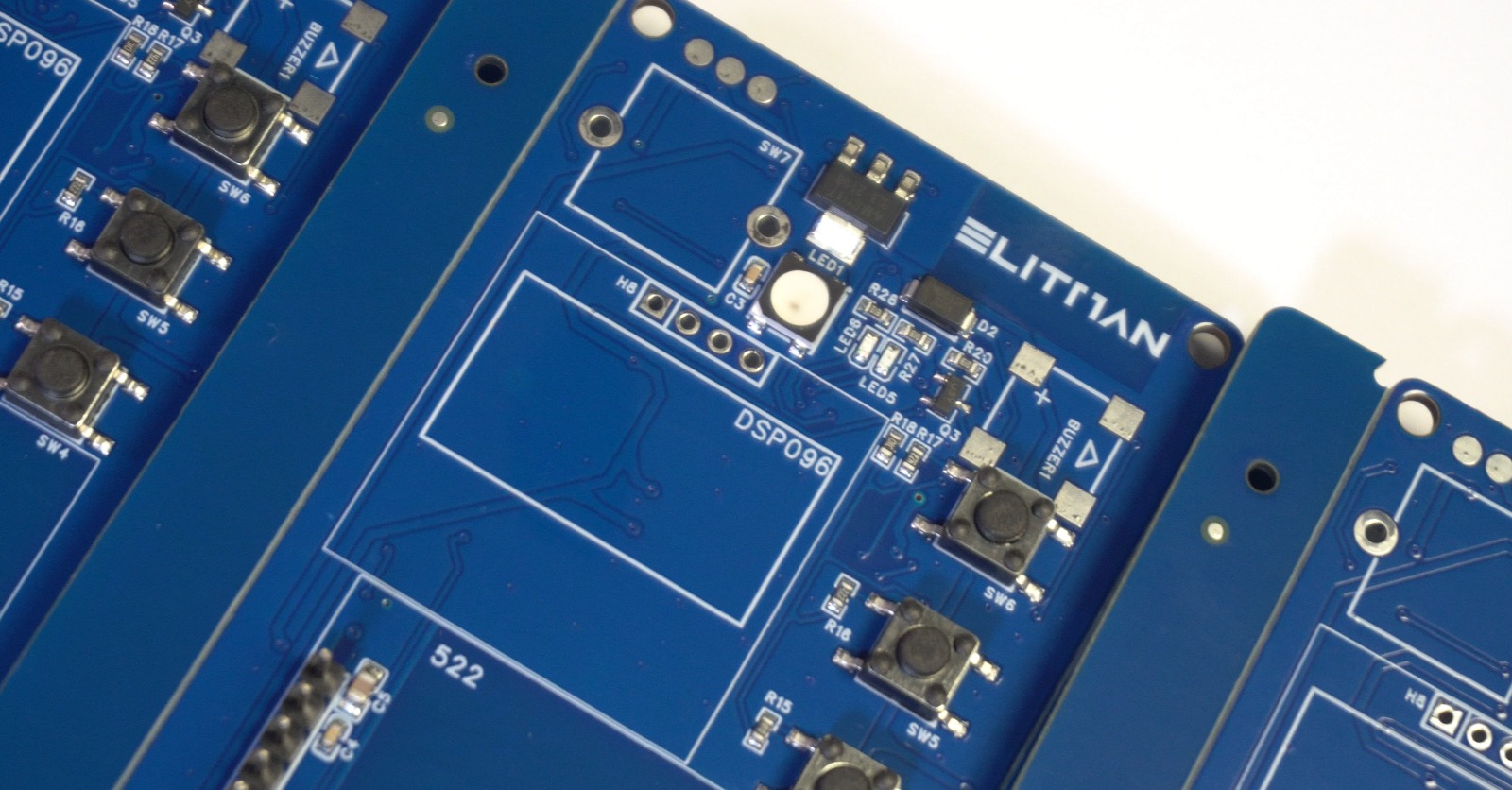

[EM-CORE-01] Universal Maker DevBoard v1.0

Description

[EM-dev. CORE-01] is a universal prototyping board designed for the microcontroller ESP32-S3 (v. dev board) for your own projects. It creates a base point from which you build your own project or you can replicate our projects as our projects are based on our own boards. Our prototyping boards come unprecedentedly with components of the highest level of quality.

👉 [ 📖 VIEW SCHEMATICS & LABS DOCUMENTATION ↗ ]

SYSTEM COMPATIBILITY // ELITMAN LABS ECOSYSTEM

This development board serves as the dedicated core for the following Elitman Labs hybrid builds:

• 🟢 [✔] ELS PROJECT — Fully Supported (Direct Plug & Play) [View Documentation ↗]

• 🟢 [✔] AIRSOFT BOMB PROP — Fully Supported (Native Pinout Match) [View Documentation ↗]

• 🟢 [✔] AIRSOFT SMART TARGET — Supported (Requires external relay breakout) [View Documentation ↗]

• 🔴 [✖] ELS-04: High-Voltage Pulse Igniter — Incompatible (Requires dedicated EM-Power-HV Board)

💡 BUILDER NOTE:
Building a specific project from the YouTube build series? If you don’t already stock discrete passives and hardware in your shop, we strongly recommend getting the complete 👉 [COMPONENT BUNDLE ]. It bundles this DevBoard with all verified sensors, passives, connectors, and mounting hardware required for the build.
